HYVER angles
HYVER angles

The available angles grades are according to European and American standards.

The mechanical characteristics of HYVER’s angles are improved by precise control of the temperature during the rolling process.


Grades available:

Eequal angles and Unequal angels

ENS355JR/J0/J2/K2
AmericanA709-Grade 50/50S


M

A992-Grade 50


ML

A572-Grade 50 / Grade 65


HYVERx

A588-Grade B


-G4/G11/G12+M



S460M




16Mo3





Weathering steel grade HYVERx

according to EN 10025-5 / ASTM A588




HYVERx structural shapes belong to a family of atmospheric corrosion resistant, low alloy steels for sustainable applications with focus on long service life with low maintenance costs.




By initially forming a natural, tightly adherent, protective oxide layer (patina), it strongly reduces further oxidation and thus supersedes the application of any corrosion protection system.


Therefore, along with aesthetic possibilities, HYVERx provides durable construction

even in the absence of initial painting, which enables savings thanks to:

• reduced cost of maintenance as well as time of maintenance operation;

• no environmental impact due to absence of maintenance operations and residues.



16 Mo3: Steels for elevated service temperatures



Thanks to their improved mechanical properties (specified up to 500°C) and improved creep resistance, 16 Mo3 alloyed steel grades are particularly recommended for use at elevated service temperatures.


Those weldable steel grades are particularly relevant for use in powerplant equipment,

exhaust systems, hot machine parts or incineration plants.

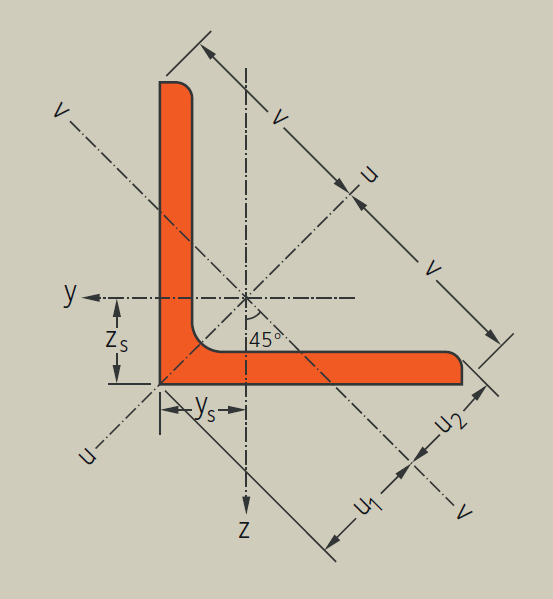

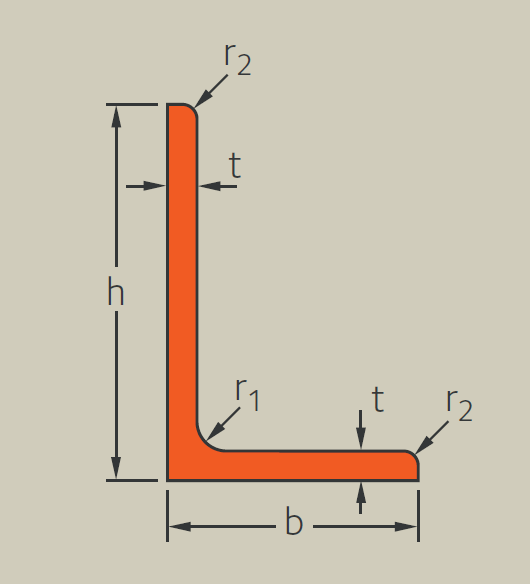

Equal leg angles

Dimensions: EN 10056-1:2017

Tolerances: EN 10056-2:1993

Surface condition: according to EN 10163-3:2004, class C, subclass 1


HYVER eagles     HYVER eagles

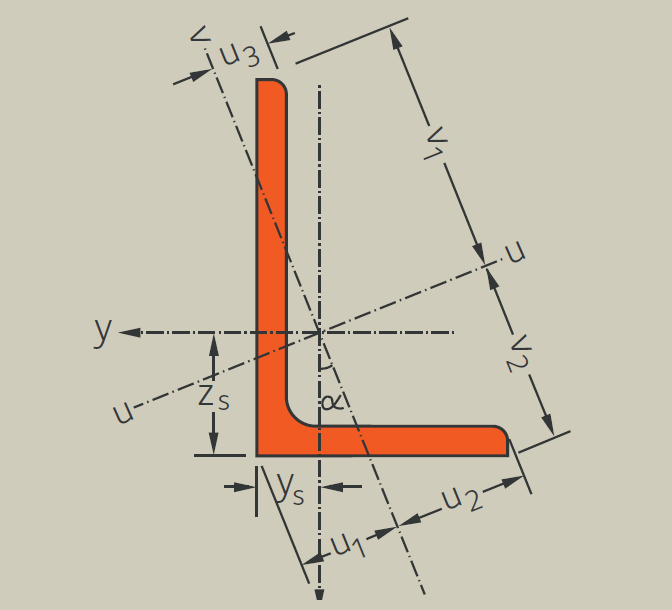

Unequal leg angles

Dimensions: EN 10056-1:2017

Tolerances: EN 10056-2:1993

Surface condition: according to EN 10163-3:2004, class C, subclass 1


HYVER eagles      HYVER eagles


American equal leg angles

Dimensions: ASTM A 6/ A 6M

Tolerances: ASTM A 6/ A 6M

Surface condition: according to ASTM A 6/ A 6M



American unequal leg angles

Dimensions: ASTM A 6/ A 6M

Tolerances: ASTM A 6/ A 6M

Surface condition: according to ASTM A 6/ A 6M
